MDE CardiScan
MDE CardiScan Cardiovascular Screening
The MDE CardiScan is a sophisticated cardiovascular system that offers unparalleled automated evaluation services for the investigation and analysis of standard 12-lead ECG signals and blood pressure values. MDE CardiScan incorporates an automated Cardiac Neuropathy screening function, encompassing all five of Ewing’s cardiovascular reflex tests, along with automatic score determination.
Cardiologic enables you to comply with the American Diabetic Association’s recommendation for detecting Cardiac Autonomic Dysfunction by evaluating precise R-R changes with simple physiological excercises.
Elements of system

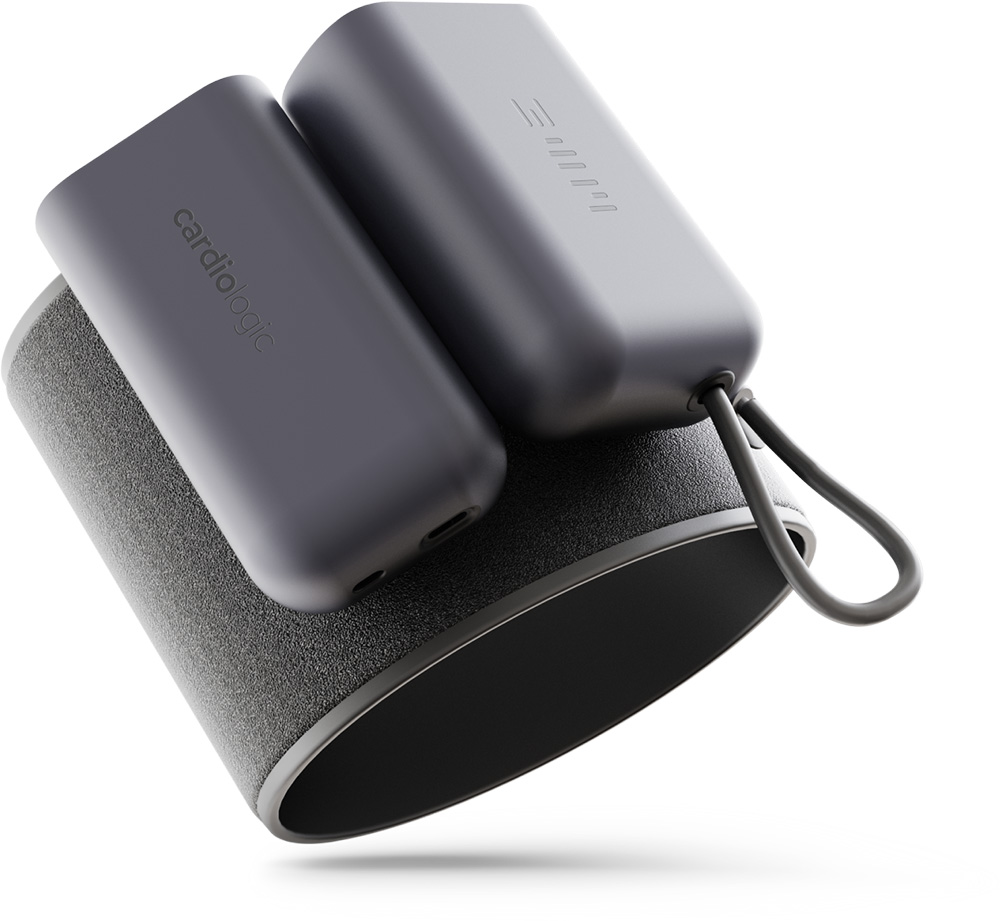

01 Wearable medical grade ECG with 4 and 12 lead ECG cables
02 Wearable medical grade Non-Invasive Blood pressure meter

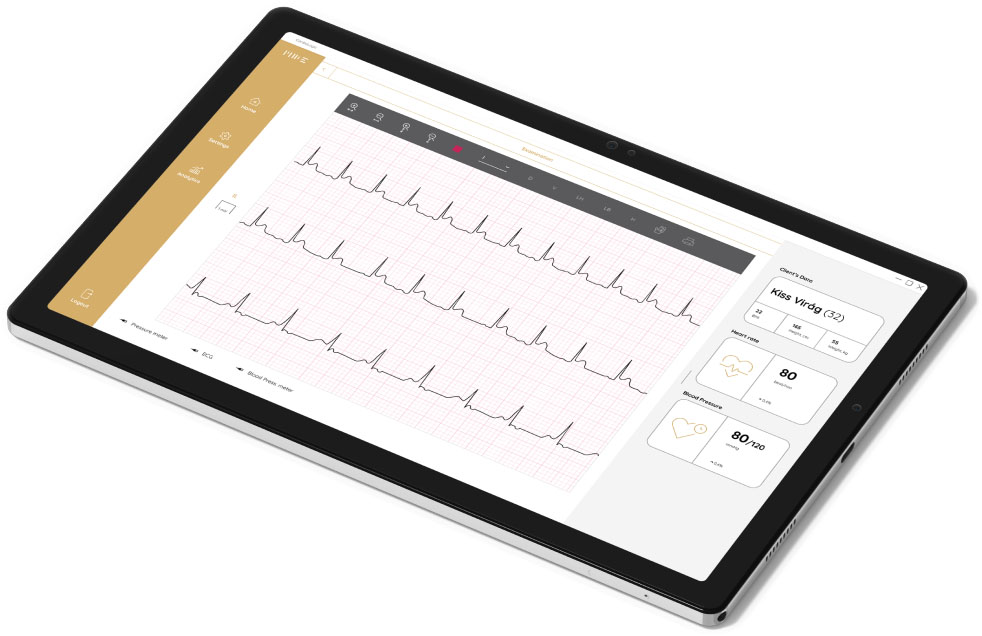

03 Tablet controlled wireless software solution – convenient usage
04 Combined wireless pressure sensor for the Valsalva maneuver
and Handgrip tests
05 Convenient rubber ball for the Handgrip
Features
Automated Cardiac Neuropathy screening function with all 5 cardiovascular reflex test and automatic score value determination. At the end of the test the system provides a comprehensive report with the major cardiac parameters.
Examination of the parasympathetic functions:
- Heart rate response to deep inspiration and expiration,
- Heart rate response to the Valsalva maneuver,
- 30:15 ratio: heart rate response upon standing up.
Examination of the sympathetic functions:
- Decrease in systolic blood pressure upon standing up,
- Handgrip strength test: rise in diastolic blood pressure upon sustained handgrip.
No doctor presence is needed, a well-trained assistant can conduct tests
The system is flexible, conducted tests could be chosen
2 – 25 minute test procedure depending on the kind of performed tests
Full system with online training included.
